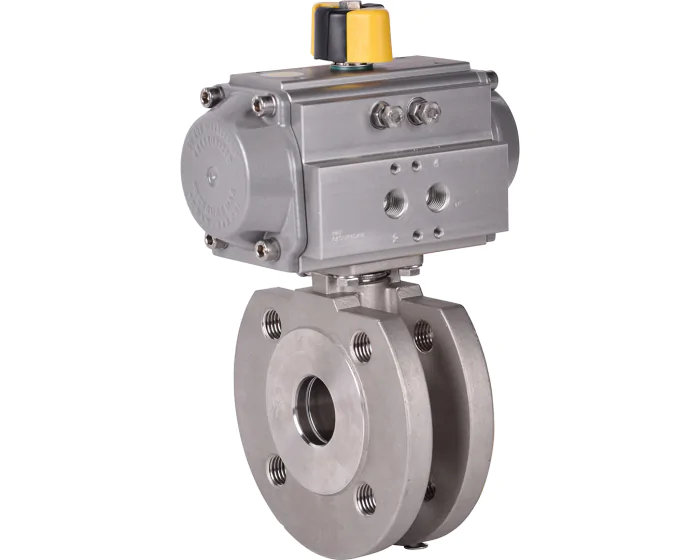

The 771 XS series wafer ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar, TS: 180°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 152.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 16 |
| Connections | Between flanges PN16 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| Pneumatic actuator type | Spring return |
| Ball valve design | Wafer |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN15 - 1/2'' | 272902017006R | S1000284 |
€304.19
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN15 - 1/2'' | 272902017107R | S1000285 |
€354.46
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN20 - 3/4'' | 272903017006R | S1000286 |
€306.59
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN20 - 3/4'' | 272903017107R | S1000287 |
€356.86
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN25 - 1'' | 272904017007R | S1000288 |
€307.19
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN25 - 1'' | 272904017108R | S1000289 |
€436.56
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN32 - 1''1/4 | 272905017007R | S1000290 |
€350.81
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN32 - 1''1/4 | 272905017108R | S1000291 |
€445.54
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN40 - 1''1/2 | 272906017007R | S1000292 |
€426.37
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN40 - 1''1/2 | 272906017109R | S1000293 |
€555.67
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN50 - 2'' | 272907017008R | S1000294 |
€504.56
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN50 - 2'' | 272907017111R | S1000295 |
€815.14
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN65 - 2''1/2 | 272908017009R | S1000296 |
€746.99
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN65 - 2''1/2 | 272908017111R | S1000297 |
€999.83
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN80 - 3'' | 272909017009R | S1000298 |
€846.60
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN80 - 3'' | 272909017112R | S1000299 |
€1,152.60
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN100 - 4'' | 272910017010R | S1000300 |
€1,208.90
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN100 - 4'' | 272910017113R | S1000301 |
€1,780.71
(excl. btw)
|
add to cart |
